Flow Diagrams

	flowchart LR

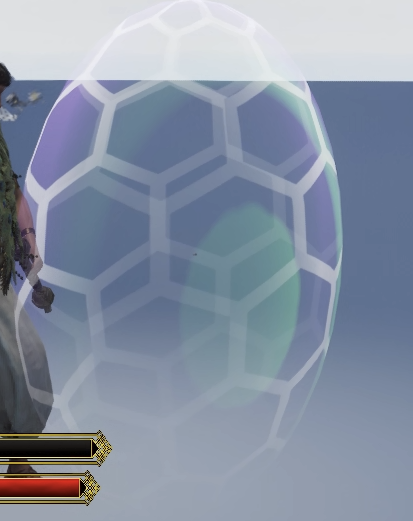

	A[Projectile Hits Shield] --> B[Destroy Projectile]
	B --> C[Damage Converted to Charge]
	C --> D[Shield Changes Colour]
	D --> E[Data Given to Ripple Material]
	A --> F[Player Performs Impact Animation]
	F --> G[Shield Impact Sound Played]


	flowchart LR
	A[Player Activates Ability] --> B[AOE Effect Active]
	B --> C[Heal Allies]
	C --> D[Stun Enemies]
	D --> E{Exceeded Max Age?}
	E -- No --> B
	E -- Yes --> F[Destroy Effect]
	A --> G[Player Performs Ability Animation]
	G --> H[Ability Used Sound Played]

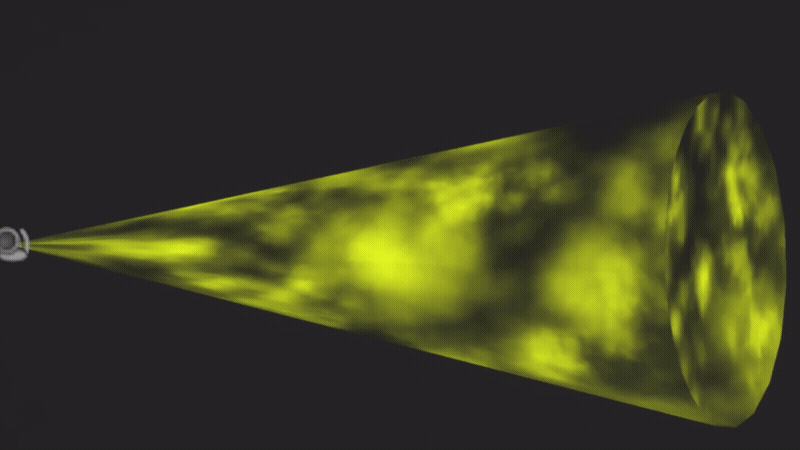

Amrita Area (AOE Ability)

• Developed a cone-shaped area ability which can be triggered when shield charge is at or above 50% of its maximum charge.
• The specified amount of shield charge is consumed when the ability is used.
• Allies (including the player) within the area are healed, while enemies within the area are put into a stunned state.
• Stunned enemies are tracked internally to ensure they are only stunned once for each time they enter the area.
• Automatically destroys itself after a fixed duration.
• Includes a looping sound cue which plays while the area exists, and a sound which plays when the area dissipates.

Animations and Actions

• Implemented animation events for shield activation, impact reactions, and ability execution.
• Integrated Unreal Engine action system to ensure gameplay and animation synchronisation.
• Created a custom action for AOE ability, with a per-character adjustable translational offset.
• Integrated audio triggers directly into action pipeline to ensure consistency across the project.

Focus Depletion

• Implemented a continuous drain on the player's Focus points while the shield is raised.
• Drain occurs over time, instead of a one-off activation cost.
• Introduced the use_focus flag which can enable or disable the focus-related features easily.
• Displays a contextual UI warning when the shield cannot be raised because there isn't enough Focus.
• Balances defensive gameplay by forcing the player to perform resource management.

Chess GUI

Chess Core

Project Summary

• Built a real-time ray-marched 3D scene renderer using a fullscreen shader pipeline in Bevy.
• Implemented responsive rendering that compensates for window rescaling to remove texture stretching.
• Created a fly camera system which pans via mouse input, translates based on keyboard inputs, and includes sprint controls for faster movement.
• Designed a modular shape system built using Signed Distance Functions, currently implemented for spheres, cubes, and planes.
• Added smooth unions or boolean blending for combining SDFs, with configurable blending constants.
• Implemented dynamic lighting, surface shading, and gamma correction in the fragment shader, consistent with the Phong shading model.
• Built a custom ray-march loop with collision detection, outlines for near-misses, and a gradient sky background.
• Structured shader data using Rust-side materials passed directly into WGSL uniforms.
• Included development-build eGUI tooling to modify in-game data in real-time.

Technical Challenges

• Balancing of ray-march step count against rendering performance.
• Maintaining visual quality while avoiding excessive shader calculations.
• Preventing stretched output across varying window aspect ratios.
• Ensuring stable camera controls with smooth rotation, while avoiding gimbal locking issues.
• Passing structured data from Rust into the shader efficiently using uniforms, including dynamic shape data arrays.

Rendering Pipeline

• A fullscreen quad rendered each frame.
• Fragment shader casts a ray from the camera for each pixel.
• Ray marches through the scene using Signed Distance Functions.
• Closest hit point is shaded using normals and lighting, near-misses are highlighted and become outlines.

Shader Camera

• Replaced the traditional in-engine camera with an in-shader camera.
• Calculated a ray direction, per-pixel, using screen-space coordinates and the calculated view frustum (based on camera parameters).
• Implemented free-fly movement with keyboard translation across forward, right, and up axes of the camera.
• Added mouse-look controls to rotate camera smoothly in real-time.
• Camera rotations are stored and modified as quaternions to avoid gimbal lock.
• Passed camera position, rotation, FOV, and basis vectors from Rust into WGSL uniforms on each frame.
• Included sprint movement for faster scene navigation (Controlled via Shift).
• Integrated camera parameters with the eGUI windows to allow real-time modification while the scene is running.

Shape System

• Scene geometry represented using modular Signed Distance Functions primitives.
• Currently supports spheres, cubes, and planes.
• New shapes can be added by implementing additional SDF definitions.
• Each shape stores its position, scale, and colour, as well as its shape type (represented as an integer).
• Shapes can be blended using smooth unions or combined using boolean operations.
• Blending parameters are exposed at runtime and can be modified using the eGUI windows.

Lighting & Shading

• Surface normals are approximated from neighbouring SDF samples.
• Phong-style lighting model used for the diffuse and specular shading.
• Single dynamic light source with configurable position and colour.
• Gamma correction applied before final colour output for improved colour accuracy.
• Background rendered as a sky gradient when the ray didn't collide with any geometry.
• Silhouette outlines are generated from near-miss ray distances.
• Hard shadows are calculated to darken areas where the shapes block the light from the light source.

Future Improvements

• Portal rendering using non-linear ray traversal through SDF space.
• Soft shadows, and ambient occlusion to improve realism of the rendering.
• Multi-light support with extended material properties (roughness, emissiveness, etc).
• Adaptive ray-march step optimisation based on scene complexity.
• Additional SDF primitives: cylinders, capsules, and toruses.

Project Summary

• Built a system resource daemon in Rust using Tokio.
• Uses UnixStream sockets for IPC between daemon and clients.
• Push-based update system which broadcasts state changes to all listeners.
• Sends desktop notifications via dunstify when resources change.
• Default polling interval of 2.0s for resources that require polling.

Technical Challenges

• Designing a push-based system to eliminate client-side polling.
• Maintaining consistent state across multiple concurrent listeners.
• Balancing polling and event-driven updates across different resource types.
• Broadcasting full system state efficiently without excessive overhead.
• Ensuring reliable IPC communication using UnixStream sockets.
• Separating data acquisition from transformation, for increased maintainability.
• Designing a modular system to support multiple interchangable data sources.

Daemon Architecture

• Central daemon handles all resource monitoring and state changes.
• Pushes full state as JSON to all connected listeners, triggered when any resource changes.
• Combines event-driven updates with interval-based polling.
• Listeners receive updates instantly without polling delays.

Command Line Interface

• Built using Clap for structured command parsing.
• Supports commands: daemon, listen, get, and set.
• Full help support for all commands and subcommands.
• Provides aliases for faster command usage.
• Usage:

  Command	Description
  bar_daemon daemon	Runs the daemon. Only allows one daemon to be active on the socket at a time. Will respond to get, set, and listen commands. Outputs errors and logs to a file.
  bar_daemon listen	Listens for changes in resources. Receives JSON output of all resources when there's a change.
  bar_daemon get [RESOURCE] [VALUE_TYPE] bar_daemon get volume percent bar_daemon get ram icon bar_daemon get brightness	Gets the value of the RESOURCE's VALUE_TYPE. Gets all values for the RESOURCE if no VALUE_TYPE is supplied. If no RESOURCE is provided, gets all values for all resources.
  bar_daemon set <RESOURCE> <VALUE_TYPE> <VALUE> bar_daemon set volume percent -20 bar_daemon set fan profile next bar_daemon set brightness monitor 50	Sets the value of the requested RESOURCE's VALUE_TYPE. For brightness and volume delta values can be provided: +10, -50. For brightness percentages are accepted: +50%.

Resource System

• All resources implement a shared Monitored trait.
• Polling behaviour defined via Polled trait.
• Optional notification behaviour via Notify trait.
• Supports interchangeable backends (e.g: wpctl → pactl).
• Separates logic into:
  • source.rs → data acquisition.
  • value.rs → data processing and representation.

Monitored Resources

• Mix of event-driven and polled resources, depending on resource acquisition method.
• Supports multiple system resources:

  Resource	System Command	Description	Notifies	Polled
  Volume	wpctl	Monitors volume state. Controls volume state. Perceptual scaling applied.	Yes	No
  Brightness	brightnessctl	Uses hard-coded device IDs for now. Monitors display and keyboard brightness. Controls display and keyboard brightness.	Yes	No
  Battery	acpi	Polls battery state. Provides threshold-based notifications.	Yes	Yes
  Bluetooth	bluetooth (bluetoothctl)	Monitors Bluetooth state. Controls Bluetooth state.	Yes	No
  Fan Speed	asusctl	Monitors fan profile. Controls fan profile.	Yes	No
  Memory	free	Polls system RAM usage.	No	Yes

Data Flow

• Resource updates trigger full-state JSON broadcast.
• Listeners receive complete system snapshot on each update.
• Simplifies client logic by avoiding partial updates.
• Ensures all clients remain synchronised.

Volume Scaling (Perceptual Scaling)

• Implements perceptual (logarithmic) volume scaling.
• Fixes non-linear behaviour of Pipewire volume.
• Uses square root mapping for consistent perceived increments.
• Maintains user-facing range of [0-100].

Current Limitations

• Brightness device IDs are currently hardcoded.
• Full-state broadcasts may be inefficient for high-frequency updates.

Project Summary

• Built a configurable CLI tool for playing themed system sounds based on keyword input.
• Decouples sound naming from file structure, enabling a single interface across multiple themes.
• Designed for integration with system notifications and automation workflows.

Technical Challenges

• Abstracting over inconsistent filesystem layouts across themes.
• Designing a flexible mapping system without ambiguity.
• Maintaining a simple CLI without compromising high configurability.
• Handling multiple file extensions and nested directories efficiently.

Core Design

• Keyword-driven playback system:
  • sound_themer play <KEYWORD> resolves to a mapped sound file.
  • Falls back to direct filename matching if no mapping exists.
• Theme Abstraction Layer:
  • Each theme defines its own directory structure, file extensions, and naming scheme.
  • Ensures consistent CLI usage across incompatible sound packs.
• Runtime Flexibility:
  • Themes can be overridden via CLI flags without modifying the config.

Configuration System

• Uses TOML for human-readable, extensible configuration.
• Defines:
  • Active theme.
  • Theme directories and file extensions.
  • Keyword → filename mappings.
• Supports:
  • Nested directory structures.
  • Non-uniform naming conventions across sound themes.
• Mapping system enables:
  • Normalisation of inconsistent naming.
  • Reuse of the same commands across all themes.

Command Line Interface

• Built using Clap for structured command parsing.
• Supports:
  • Subcommands with built-in help output.
  • Command aliases (play → p, list → ls).
• Example usage:

  Command	Description
  sound_themer play <SOUND_NAME> sound_themer p <SOUND_NAME>	Plays a sound from the theme folder. Maps from SOUND_NAME to its associated value in the selected theme (if one exists).
  sound_themer list sound_themer ls	Lists the sound files in the currently selected theme's folder.
  sound_themer --⁠theme <THEME_NAME> <COMMAND> sound_themer -t <THEME_NAME> <COMMAND>	Overrides the theme which is selected in config.toml.

Extensibility

• New themes can be added without making code changes.
• Configuration-driven design supports:
  • Custom keyword dictionaries.
  • Arbitrary directory layouts.
  • Additional sound formats.
• Suitable for integration with:
  • Window managers.
  • Notification systems.
  • Automation scripts.

Example Config

# Name of the selected sound theme
theme_name = "freedesktop"

[[themes]]
# Name of the sound theme folder
name = "freedesktop"

# Extension on the sound files
sound_ext = "oga"

# Directories where the sounds are found
directories = ["stereo"]

# Provide a mapping between certain phrases and their respective sound file name
mapping = {
  audio-change = "audio-volume-change",
  login = "service-login",
  logout = "service-logout",
  message = "message",
  power-plug = "power-plug",
  power-unplug = "power-unplug",
  dialog-info = "dialog-information",
  dialog-warning = "dialog-warning",
  dialog-error = "dialog-error",
  screen-capture = "screen-capture",
  device-added = "device-added",
  device-removed = "device-removed",
  camera-shutter = "camera-shutter",
  trash-empty = "trash-empty",
  complete = "complete"
}

Project Summary

• Built a lightweight templating tool in Rust for modifying configuration files in-place.
• Implements a minimal inline templating language embedded within comments.
• Designed for dotfile theming and automation, enabling dynamic config updates without separate template files.

Technical Challenges

• Designing a minimal templating language that works within existing config syntax.
• Parsing inline comment-based instructions without interfering with file semantics.
• Ensuring safe, deterministic replacements using a fixed-length constraint.
• Managing multiple sequential transformations on a single line.
• Supporting flexible file formats with different comment styles.

Core Design

• Inline templating system:
  • Template logic is written inside comments on the same line as the target config.
  • Avoids separate template files, keeping configuration self-contained.
• Marker-Based Parsing:
  • Each file defines a marker_char (e.g: //, ;, %).
  • Template code is detected when the marker is repeated marker_repetition_num times.
• Pattern-Based Replacement:
  • Uses Regex patterns to locate target text.
  • Replaces matched segments with values defined in config (keyword).

Safety Model

• Enforces fixed-length replacements:
  • Replacement text must match the length of the original.
  • Prevents unintended shifts in file structure or formatting.
• Deterministic matching:
  • Each function operates on a specific match index.
  • Multiple functions on a line act on successive matches (nth match based on their order).

Templating System

• Keyword-driven replacement:
  • A keyword maps to a value defined in the TOML config.
  • Used to replace matched patterns in config files.
• Execution Model:
  • Functions are parsed left-to-right on a line.
  • Each function targets a specific match within the line.

Supported Functions

Configuration System

• Uses TOML for configuration.
• Located at $XDG_CONFIG_HOME/dotfile-templater/config.toml.
• Defines:
  • Active theme.
  • Marker behaviour (marker_char, marker_repetition_num).
  • Target files and their parsing rules.
• File configuration:
  • Supports relative paths (from .config/) and absolute paths.
  • Each file must define its own marker_char.

Example Config

theme = "purple-night"
marker_repetition_num = 3
files = [
  {file = "eww/eww.scss", marker_char = "//"},
  {file = "eww/bar/bar.yuck", marker_char = ";"},
  {file = "wofi/style.css", marker_char = ";"},
  {file = "hypr/hyprland.conf", marker_char = "%"},
]

[[themes]]
name = "purple-night"

primary_col = "#9549FF"
secondary_col = "#FF4958"
tertiary_col = "#B3FF49"
quaternary_col = "#49FFF0"

bg_col = "#1A1B26"
bg_col_light = "#24283B"
fg_col = "#A9B1D6"

[[themes]]
name = "blue-banana"

primary_col = "#48FFD1"
secondary_col = "#4876FF"
tertiary_col = "#FF4876"
quaternary_col = "#FFD148"

bg_col = "#0A0A40"
bg_col_light = "#11116C"
fg_col = "#9999F8"

Theme System

• Themes are defined as named sections in the config.
• Each theme:
  • Must include a name.
  • Can define arbitrary variables (e.g: colours, strings).
• Enables:
  • Centralised value management.
  • Easy switching between configurations (e.g: colour schemes).

Example Usage

test = This will not be configured % Even if there are comments

$primary: rgb(9549FF); %%% @replace-pattern('rgb\([A-Za-z\d]{6}\)', primary_col, '[A-Za-z\d]{6}')
$secondary: #FF4958; %%% @replace-pattern-col(secondary_col, '[A-Za-z\d]{6}')
$tertiary: #B3FF49; #123456; %%% @replace-col(fg_col) @replace-col(bg_col)
$quaternary: #49FFF0; %%% @replace-col(quaternary_col)

$background: #1A1B26; %%% @replace-col(bg_col)
$background-lighter: #24283B; %%% @replace-col(bg_col_light)
$foreground: #A9B1D6; %%% @replace-col(fg_col)

Extensibility

• New template functions can be added without changing file format.
• Supports:
  • Arbitrary regex-based transformations.
  • Custom themes with user-defined variables.
  • Multiple file types with different comment syntaxes.
• Suitable for:
  • Dotfile management.
  • Theming systems.
  • Automated config generation.

Current Limitations

• Fixed-length replacement constraint limits flexibility.
• Regex-based approach may be brittle for complex syntax.
• No validation for malformed template expressions.
• Limited error feedback for failed matches or replacements.
